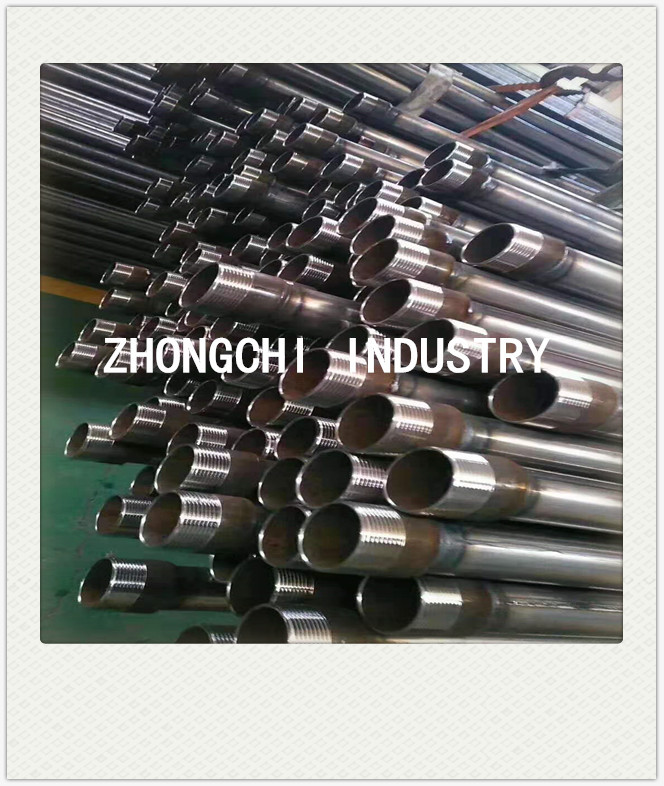

Threaded Type Sonic Tube
| Categories | Sonic Pipe |
|---|---|
| Album | View larger image |
| Model | TP01 |
| color | black |
| brand | zhongchi steel |
| pcs per bundle | 8 pcs or other |
| type | push-fit type |
| production time | 15 days |
| FOB port | TIANJIN PORT,CHINA |
| Terms of Payment | L/C, T/T |
| Update Time | 2019-12-08 |
Sonic tubes are thin black steel tubes available in different diameters with an enlarged end in a bell mouth shape.This makes the connection between two pipes an easy process and reduces labour cost.
Our factory,Tianjin Zhongchi Steel Industry Co.,Ltd, mainly produces grouting pipe and sonic tube(including many types).
Contact details:
Ms. Ella
Email:ella@zhongchisteel.com
Mobile:+86-13920004495
Skype: Ella Jiang(123154005@qq.com)
Item specifications:
Outer diameter:50-89mm
Wall thickness:1.8-3.5mm
Standard length:3-12m
Brand name | ZHONGCHI STEEL |
Commodity | Sonic tube for bore pile |
Pipe Type | Push-fit type, clamp-pressed type, threaded type, flanged type, sleeved type, grooved type |
Standard | GB/T 13793 etc |
Steel grade | Q195 etc |
Outer diameter | 50mm -89mm |
Wall thickness | 1.8-3.5mm |
Length | 3m-12m |
Surface treatment | black or other |
Colour | black or other |
End finish | plain |
Pcs per bundle | 8pcs or other |
Packing | no packing or seaworthy packing |
MOQ | 50PCS |
Capacity | 60000 mt/year |
Loading port | Tianjin,China |
In addition, we can accept the particular requirement on the sonic tube orders.
Loading picture
